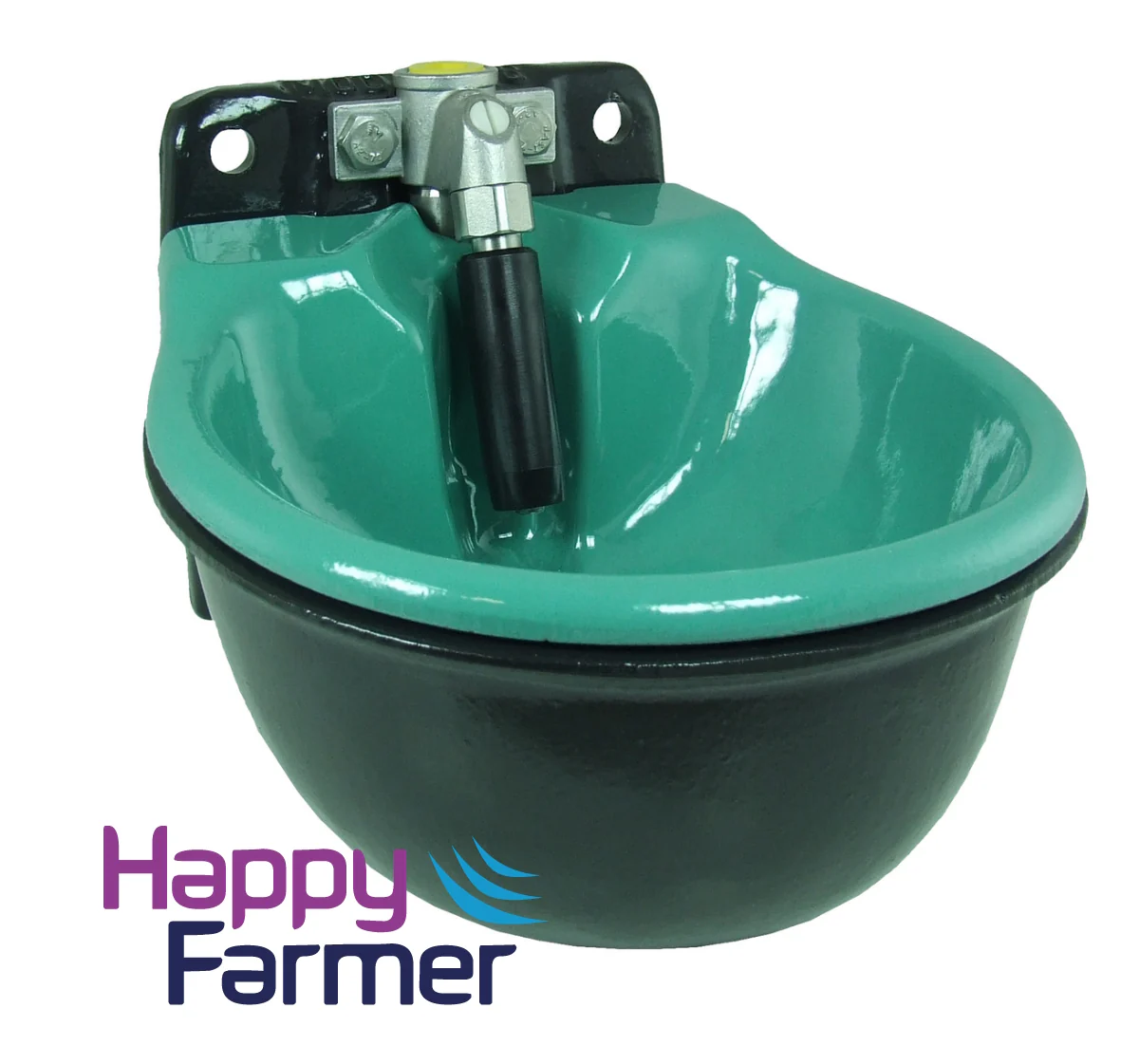

Suevia Heated drinking trough model 46 with stainless steel valve 3/4" 80W
Heated drinking trough with smooth-running rod valve for wall and pole mounting
Frost-free down to -15°C, residual water in the bowl cannot freeze.
Frost-free down to -35°C by subsequently installing a valve heater (24 V, 5 W, art. no. 101.1405)!
Cast iron drinking bowl, fully enamelled
A drinking trough suitable for 15 – 20 animals
The heating element is inaccessible to the animals and can be reached with few steps, between the drinking bowl and the bottom bowl
Smooth-running rod valve in brass (¾") or stainless steel (¾")
Connection bi.dr. from above and bu.dr. from below
Water output infinitely adjustable from outside by means of an adjusting screw
24 V, 80 W heating element with low power consumption
Wall mounting or 2" – 3" posts possible
For power supply a SUEVIA 230/24 V transformer required (versions from 100 to 400 W available)
A frost protection thermal cable 24 V, 20 W, 2 m (Art. No. 101.0861) or 24 V, 30 W, 3 m (Art. No. 101.1863) is used to heat the supply line. If the thermal cable is used in combination with plastic pipes, please ensure that the pipes are suitable for hot and cold water.
For better heat distribution, the plastic pipe must first be wrapped with aluminium tape (art. no. 101.1099) before the cable is laid on it
Accessoiries:2 mounting brackets (2x art. no. 101.0180) for attachment to posts 2" - 3". Suitable for calves, cattle, bulls (without nose ring), horses Suevia 100.1469
Description
Suevia Heated drinking trough model 46 with stainless steel valve 3/4" 80W
Heated drinking trough with smooth-running rod valve for wall and pole mounting
Frost-free down to -15°C, residual water in the bowl cannot freeze.
Frost-free down to -35°C by subsequently installing a valve heater (24 V, 5 W, art. no. 101.1405)!
Cast iron drinking bowl, fully enamelled
A drinking trough suitable for 15 – 20 animals
The heating element is inaccessible to the animals and can be reached with few steps, between the drinking bowl and the bottom bowl
Smooth-running rod valve in brass (¾") or stainless steel (¾")
Connection bi.dr. from above and bu.dr. from below
Water output infinitely adjustable from outside by means of an adjusting screw
24 V, 80 W heating element with low power consumption
Wall mounting or 2" – 3" posts possible
For power supply a SUEVIA 230/24 V transformer required (versions from 100 to 400 W available)
A frost protection thermal cable 24 V, 20 W, 2 m (Art. No. 101.0861) or 24 V, 30 W, 3 m (Art. No. 101.1863) is used to heat the supply line. If the thermal cable is used in combination with plastic pipes, please ensure that the pipes are suitable for hot and cold water.
For better heat distribution, the plastic pipe must first be wrapped with aluminium tape (art. no. 101.1099) before the cable is laid on it
Accessoiries:2 mounting brackets (2x art. no. 101.0180) for attachment to posts 2" - 3". Suitable for calves, cattle, bulls (without nose ring), horses Suevia 100.1469
