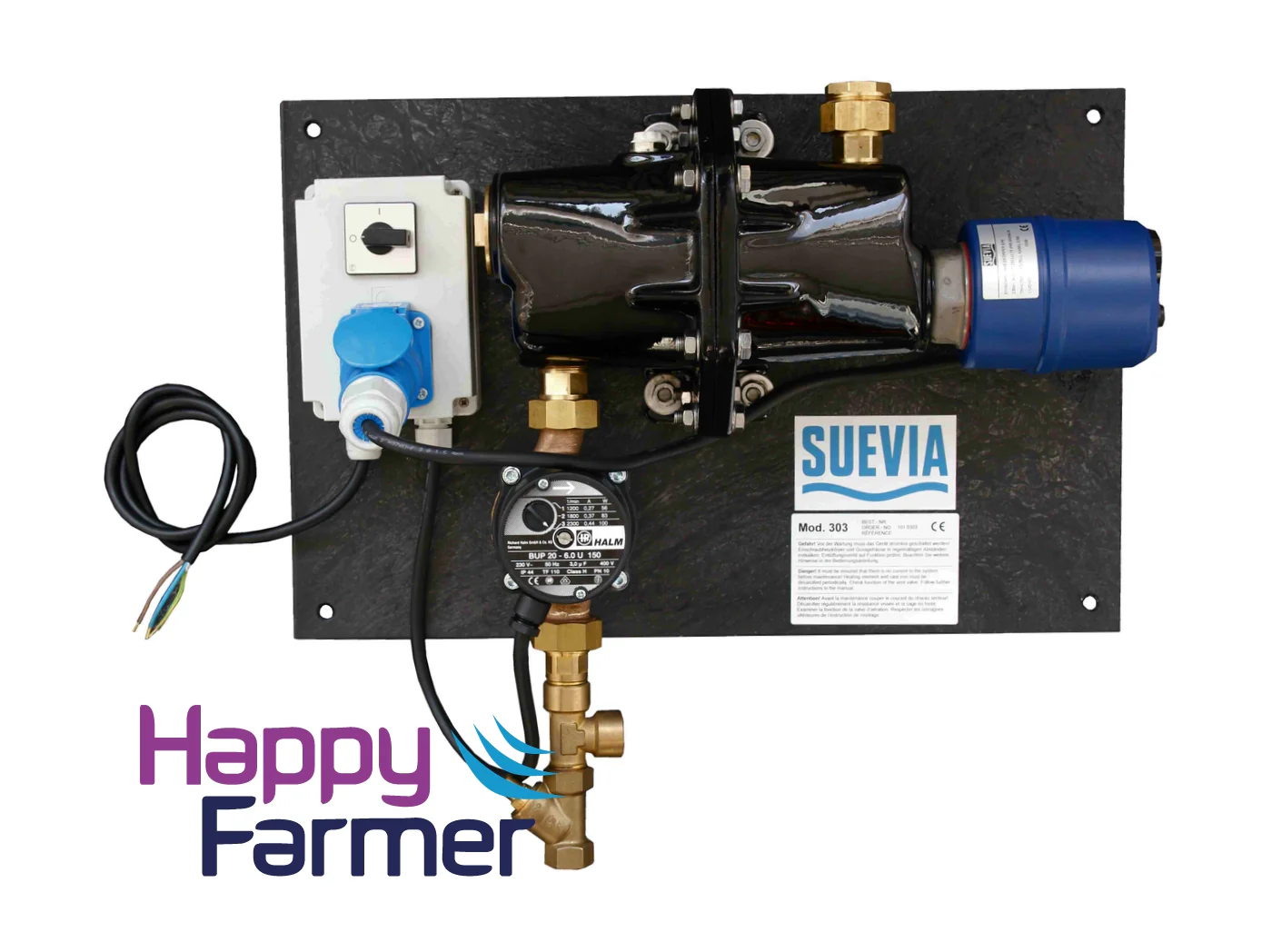

Suevia Warm water circulation unit Model 303, 230 V, 3000 W, pump 93 W
For keeping water frost-free in closed loop systems (½" or ¾") with a maximum length of 200 meters
Warm water circulation units model 300 and 303 are specially developed for installation in barns for cattle, horses, pigs, or sheep. The animals are reliably provided with water even at freezing temperatures.
The heating element is thermostatically controlled and has a built-in overheating protection. The desired temperature of the outgoing water can be set by a rotary knob on the element.
The housing made of high-quality cast iron is enamelled
Models 300 and 303 are equipped with a 3000 W heating element and a circulation pump with stainless steel pump housing (230 V, 93 W)
Ready to connect, mounted on a wall plate. The water connections are made in ¾".
Included in the delivery are: a vent valve, pressure relief valve, check valve, and a non-return valve
A 30 mA residual-current device must be present on site
Suevia 101.0303
Description
Suevia Warm water circulation unit Model 303, 230 V, 3000 W, pump 93 W
For keeping water frost-free in closed loop systems (½" or ¾") with a maximum length of 200 meters
Warm water circulation units model 300 and 303 are specially developed for installation in barns for cattle, horses, pigs, or sheep. The animals are reliably provided with water even at freezing temperatures.
The heating element is thermostatically controlled and has a built-in overheating protection. The desired temperature of the outgoing water can be set by a rotary knob on the element.
The housing made of high-quality cast iron is enamelled
Models 300 and 303 are equipped with a 3000 W heating element and a circulation pump with stainless steel pump housing (230 V, 93 W)
Ready to connect, mounted on a wall plate. The water connections are made in ¾".
Included in the delivery are: a vent valve, pressure relief valve, check valve, and a non-return valve
A 30 mA residual-current device must be present on site
Suevia 101.0303
